Das Produkt ist lagernd und wird mit DHL verschickt!

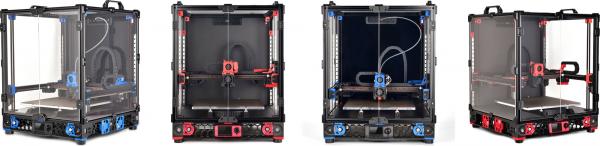

Sie erwerben hierbei ein vollständiges selbstbau Kit für einen Voron 2.4 cube von LDO der Version V2.4r2 mit Stealthburner Kit.
Die Größe des Bauraums wird 300x300x300mm und die Spannung 24V betragen.
Lediglich die gedruckten Teile und das hotend sind nicht im Lieferumfang enthalten (können aber dazu bestellt werden, siehe Varianten).
Wenn Sie sich für das Revo hotend entscheiden, kriegen Sie die High Flow Variante mit je einer 0.4mm und 0.6mm HF Düse (im CHT Stil)!
Es werden sehr hochwertige Komponenten wie ein Mean Well Netzteil, ein Octopus mainboard, ein 8mm dickes Alubett etc. mitgeliefert.
Der Drucker wird eingehaust, was das Drucken von ASA etc. sehr einfach macht (Teile für Einhausung sind ebenfalls im Lieferumfang enthalten).
Optional können Sie ein Raspberry 4 mit 1GB RAM (für 4GB Version bitte anschreiben), das Metallteile-kit (inkl. der restlichen ABS Teile / keine Zierteile) oder die Funktionsteile aus ABS (keine Zierteile) dazu erwerben. Falls Sie die Teile in ABS oder ASA mit Glasfasern von Phaetus (sehr mattes, sauberes finish) gedruckt haben wollen, schreiben Sie uns bitte vor dem Kauf an!
Der Rahmen ist schwarz.
Des Weiteren sind die Teile für Stealthburner, Klicky Probe, Werkzeuge, LED Beleuchtung, Nevermore Filter ein Toolhead PCB und ein Input Shaper vorhanden.
Weiteres Voron 2.4 Zubehör können Sie hier finden: https://meltbro.de/voron/voron-v2-4/
Geeignete hotends können Sie hier finden: https://meltbro.de/voron/voron-v2-4/hotend-109/
Bei Fragen können Sie sich gerne an mich wenden. Weitere Informationen finden Sie auf der Seite von LDO.
| Box | Item | Qty. |
| Cable Kit 2.4 | Power Cables | 1 |
|
Toolhead PCB Cables (includes the following, but not limited to)
Remove the zipties on the toolhead pcb 14 pin cable before installation into the cable chain. |
1 | |
| Breakout PCB Cables | 1 | |
| Misc. Cables | 1 | |
| Motion | Bearing, F695-2RS | 20 |
| Bearing, 625-2RS | 12 | |
| Pulley, 2GT, 16T, (5mm ID 6mm W) | 4 | |
| Pulley, 2GT, 20T, Deflanged | 1 | |
| Pulley, 2GT, 20T, (5mm ID 6mm W) | 2 | |
| Pulley, 2GT, 20T, (5mm ID 9mm W) | 4 | |
| Pulley, 2GT, 80T, (5mm ID 6mm W) | 4 | |
| Idler, 2GT, 20T, (5mm ID 6mm W) | 2 | |
| Idler, 2GT, 20T, (5mm ID 9mm W) | 4 | |
| Shaft, 5x60mm | 4 | |
| Shaft, for Nozzle Probe | 1 | |
| Thumb Screw Kit | 1 | |
| MR85 Bearing | 2 | |
| Genuine Bondtech BMG Parts | 1 | |
| Motor Gear, 17T | 1 | |
| 4mm Bowden Coupler | 1 | |
| Teflon Tube (4mm OD 2mm ID) - 10cm | 1 | |
| Foam Tape, 1mm | 1 | |
| Foam Tape, 3mm | 1 | |
| Setscrew M4*4 DIN916 | 32 | |
| Setscrew M3*2 DIN916 | 5 | |
| Electronics 1 | Mini 12864 Display (BTT) | 1 |
| AC Inlet, Integrated Switch & Fuse | 1 | |
| Keystone CAT6 Insert | 1 | |
| Raspberry Pi 4 (OPTIONAL item) | 1 | |
| Heatsink for Raspberry Pi | 1 | |
| Solid State Relay, Omron | 1 | |
| DIN Rail Mount Bracket, for SSR | 1 | |
| Silicone Thermal Pad, for SSR | 1 | |
| Fiberglass Tape, 2x12cm | 1 | |
| SD Card, 16GB | 1 | |
| Electronics 2 | Toolhead PCB | 1 |
| Breakout PCB | 1 | |
| LED Junction PCB | 1 | |
| XY Endstop PCB | 1 | |
| Z Endstop PCB | 1 | |
| Klicky Probe Kit | 1 | |
| LDO Input Shaper Toolkit | 1 | |
| Print a Steppy Kit - (LDO mascot) | 1 | |
| TMC2209 Stepper Motor Driver (BTT) | 7 | |
| Terminal Block, UK2.5B, Blue | 2 | |
| Terminal Block, UK2.5B, Red | 2 | |
| Terminal Block, UK2.5B, Ground | 2 | |
| Bridge, UK2.5B, 10 pos. | 1 | |
| Cover Plate, UK2.5B | 3 | |
| End Block for DIN Rail | 2 | |
| DIN Rail Plastic Endcap | 4 | |
| Fasteners, Tools & Misc. | Machine Screw, BHCS, M5x10 | 52 |
| Machine Screw, BHCS, M5x12 | 4 | |
| Machine Screw, BHCS, M5x16 | 43 | |
| Machine Screw, BHCS, M5x30 | 26 | |
| Machine Screw, SHCS, M5x40 | 26 | |
| Machine Screw, BHCS, M3x6 | 14 | |
| Machine Screw, SHCS, M3x8 | 273 | |
| Machine Screw, FHCS, M3x10 | 8 | |
| Machine Screw, SHCS, M3x12 | 50 | |
| Machine Screw, SHCS, M3x16 | 30 | |
| Machine Screw, SHCS, M3x20 | 40 | |
| Machine Screw, BHCS, M3x25 | 6 | |
| Machine Screw, Wafer head, M3x25 | 3 | |
| Machine Screw, SHCS, M3x25 | 12 | |
| Machine Screw, SHCS, M3x30 | 44 | |
| Machine Screw, SHCS, M3x40 | 34 | |
| Machine Screw, SHCS, M3x50 | 4 | |
| Machine Screw, FHCS, M3x6 | 26 | |
| Machine Screw, BHCS, M4x6 | 8 | |
| Self-tapping Screw, M2x10 | 43 | |
| Hexnut, M5 | 30 | |
| Hexnut, M3 | 14 | |
| T-nut, Roll-in, 2020, M5 | 80 | |
| T-nut, Roll-in, 2020, M3 | 135 | |
| Heatset Insert, Brass, M3x5x4 | 153 | |
| Washer, M5x8x1mm | 9 | |
| Precision Spacer, M5x8x1mm | 46 | |
| Washer, M3 | 6 | |
| Knurled Nut, M4 | 4 | |
| T-nuts, Hammer Head, 2020, M3 | 75 | |
| T-nuts, Hammer Head, 2020, M5 (For Mounting the Aluminum Handlebar) | 16 | |
| Set Screw, M4x4, Pre-applied Threadlocker | 32 | |
| Set Screw, M3x2, Pre-applied Threadlocker | 5 | |
| 6x3mm Neodymium Magnet | 12 | |
| Teflon Tube (4mm OD 3mm ID), 1m | 1 | |
| Zip Ties, 3x150mm | 100 | |
| Tape, 3M VHB | 1 | |
| Brass Heatset Insert tool, M3 | 1 | |
| Drill bit, 2mm | 1 | |
| Hex Wrench, 1.5mm | 3 | |
| Hex Wrench, 2mm | 1 | |
| Hex Wrench, 2.5mm | 1 | |
| Hex Wrench, 3mm | 1 | |
| Hex Wrench, 4mm | 1 | |
| Slot Head Screwdriver, 2.5mm | 1 | |
| Aluminum Handle Bar | 2 | |
| Belts, Chains, & Fans | 40x40x20 Centrifugal Fan (24V) | 1 |
| 40x40x10 Axial Fan (24V) | 1 | |
| Nevermore Micro V5 Parts (Carbon Pellets not included) | 1 | |
| 60x60x20 Fan (24V) | 2 | |
|
Genuine Gates Open Belt, 2GT, 9mm (by metre) (Z belts for Z axis) |
5.5 | |
|
Genuine Gates Open Belt, 2GT, 6mm (by metre) (AB belts for XY gantry) |
5.5 | |
| Genuine Gates Belt Loop, 2GT, 6x188mm | 4 | |
| Rubber Feet, 38x19mm | 4 | |
| Drag Chain, 10x10mm, R18 | 2 | |
| Drag Chain, 10x15mm, R28 | 1 | |
| Linear Rail Kit | Linear Rail Stainless Steel, LDO-SLR12H-(000)Z0 | 1 |
| Linear Rail Stainless Steel, LDO-SLR9H-(000)Z0 | 6 | |
| Buildplate | Magnetic Pad | 1 |
| Spring Steel Flex Plate (Double-sided Textured) | 1 | |
| Build Plate, Cast 5083 Alloy, Blanchard Ground, w/ Keenovo Silicone AC Heater w/ thermistor - 280x280mm (600W) & Thermal Fuse (125c) | 1 | |
| Panels (Printed Solid will provides their own ACM panel set) |
Deck Panel, Acrylic, Matte Black, 4mm | 1 |
| Back Panel, Acrylic, Matte Black, 3mm | 1 | |
| Bottom Panel, Acrylic, Matte Black, 3mm | 1 | |
| Door Panel, Acrylic, Clear, 3mm | 2 | |
| Side Panel, Acrylic, Clear, 3mm | 2 | |
| Top Panel, Acrylic, Clear, 3mm | 1 | |
| Frame Kit | LDO V2.4 Frame kit | 1 |
| Motor Kit | LDO V2.4 Motor Kit RevB | 1 |
| DIN Rail, Steel | 2 | |
| BigTreeTech Octopus V1.1 | 1 | |
| Meanwell LRS-200-24 PSU* | 1 | |
| C13 Power Cord 1.5m | 1 | |
| PVC Wire Duct, 20x25mm profile | 4 | |
| Extrusion Cover, 6mm width | 2 | |
| Additional Kits | Klicky Probe | 1 |
| Nevermore Filter (carbon NOT included) | 1 | |
| LDO Input Shaper | 1 | |
| Stealthburner Beta Upgrade | 1 | |
| Hotend | NOT INCLUDED. Get your own favorite hotend. | |
| Printed Parts | NOT INCLUDED. Get with PIF or print by yourself. | |
